KD 260 Horizontal Pillow Packing Machine Ss304
Product Description:
The pillow packaging machine is automatic sensing of material length, automatic bag sealing and packaging, and no material shutdown function.
This machine adopts 304 stainless steel shell frame, which is durable and does not rust, and is equipped with a production date coding machine and a punching machine. The packaging speed is 40-230 bags per minute.
Features:
A. The special adjustable bag maker can better adapt to the current packaging requirements of multiple varieties and specifications.
B. Differential feeding mode makes it easy to adjust the feeding position of the machine during operation.
C. Advanced microcomputer packaging controller, excellent man-machine dialogue mode, so that speed, bag length, cutting point position detection, etc. can be directly displayed on the interface.
D. Sliding horizontal sealing mechanism, the height of horizontal sealing can be adjusted up and down arbitrarily.
E. Imported color mark detector, which makes the color mark detection more accurate. Net pattern, straight pattern and vertical pattern sealing are optional. Frequency conversion speed regulation, convenient and simple.
| Max.Film width | 260mm |
| Max capacity of packing | 20-120 pcs/ min |
| Film thickness | Film thickness |
| Bag Length | 60-300 ( Do not exceed this size ) |
| Packing width | 25-150mm |
| Packing Height | ≤80mm |
| Power Supply | 220V 2.4 kW |
| Overall dimensions(L*W*H) | 2600*750*4500mm |
| Total Weight | 680kg |
Packing&Shipping

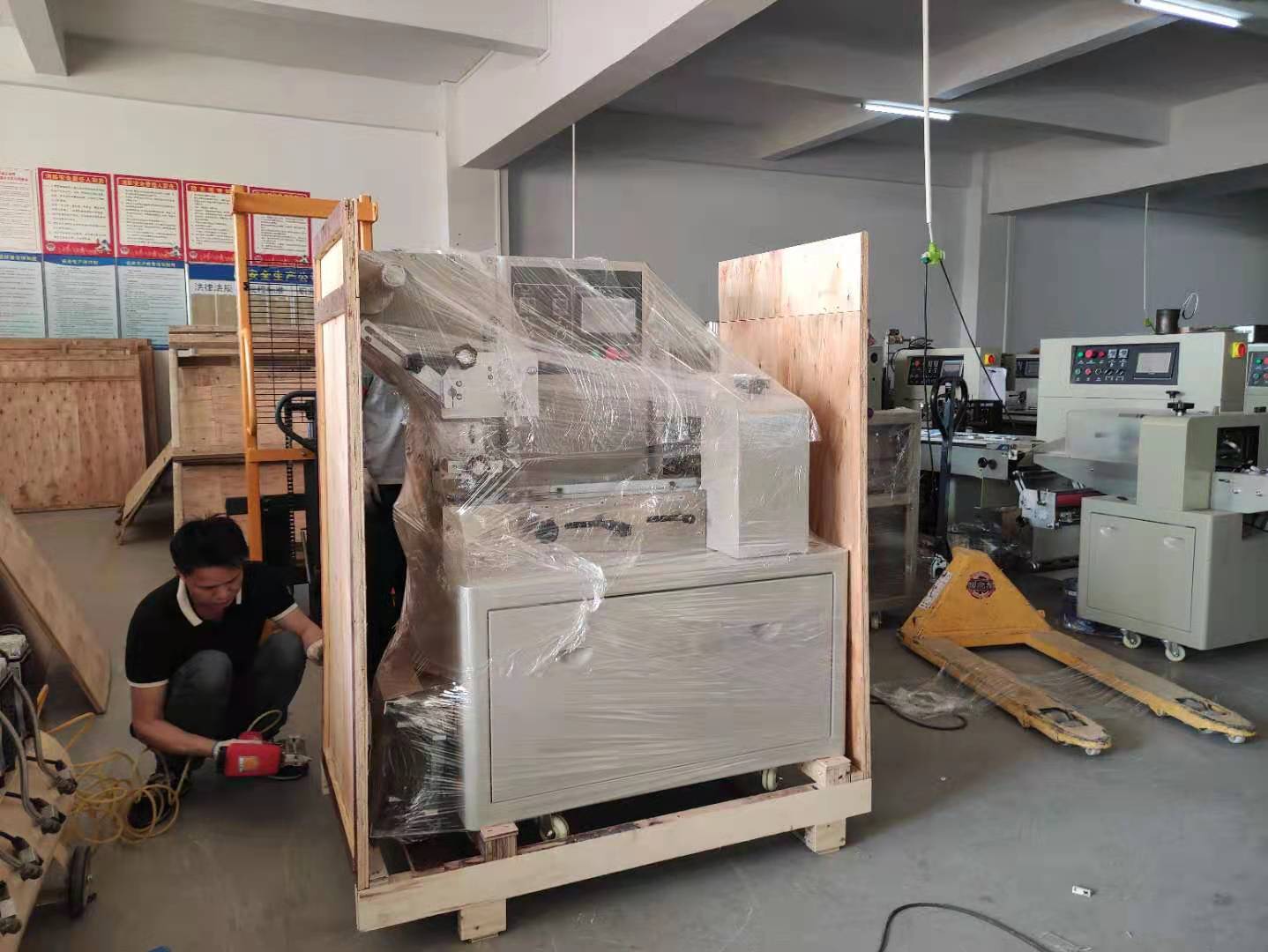

Machine Packing Details:
1)Dedust & Cleaning
2) Lubricate Drive Parts
3) Divide Machine Into Modules
4) Wrap Modules With Plastic Film
5)Packing Modules into Plywood Cases
6)Mark Shipping Mark In The Cases
If any special requirements, we will pack it as requested.
